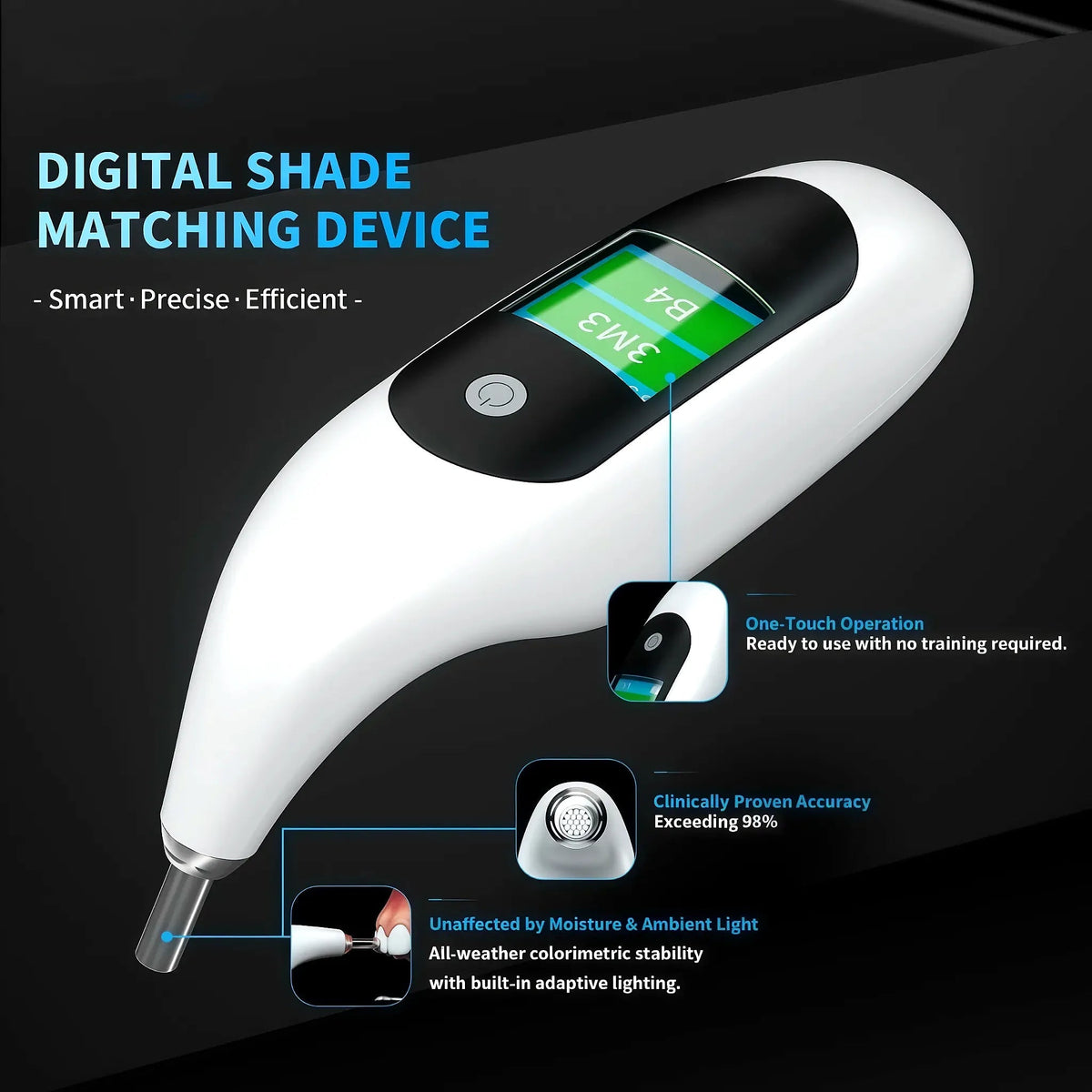

Tooth Shade Guide VITA Compatible

Key Features

• High-Precision Spectrophotometer Technology – Delivers fast and reliable digital tooth shade analysis with exceptional accuracy.

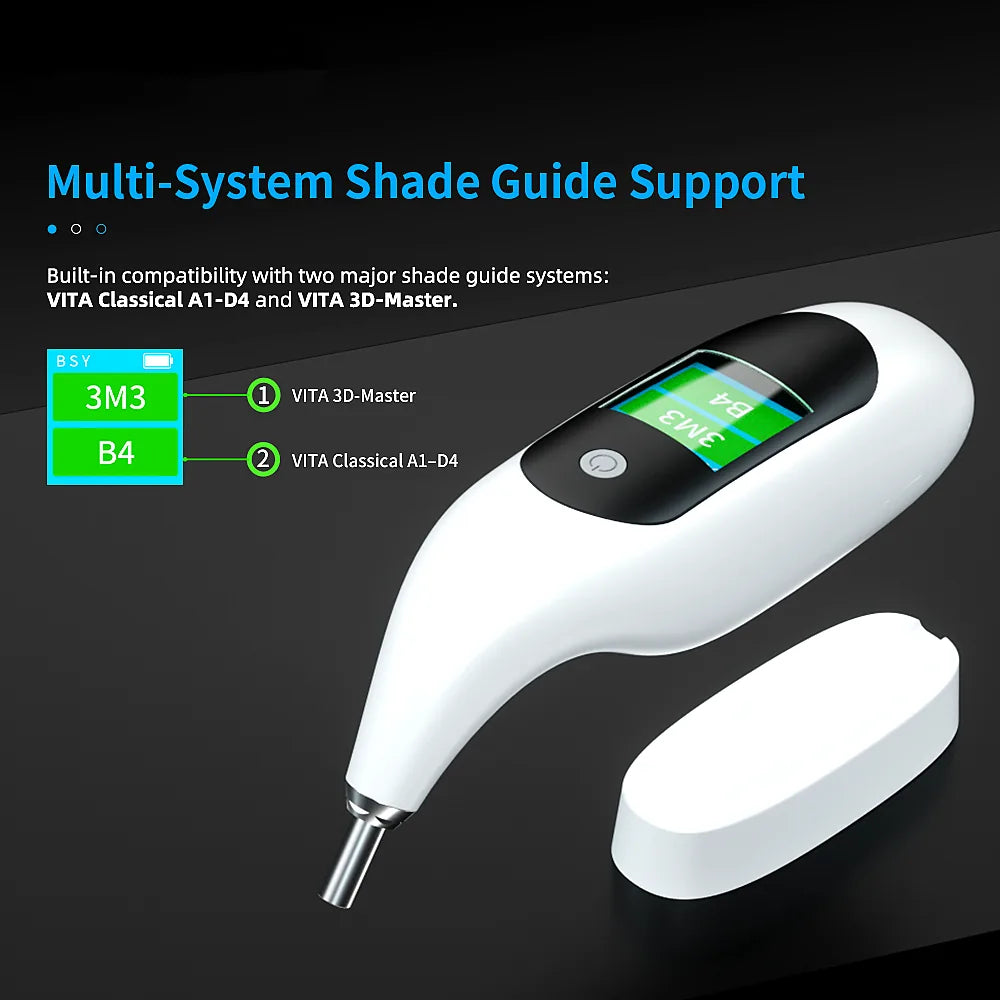

• Compatible with VITA Shade Systems – Supports both VITA Classic A1–D4 and VITA 3D-Master shade guides.

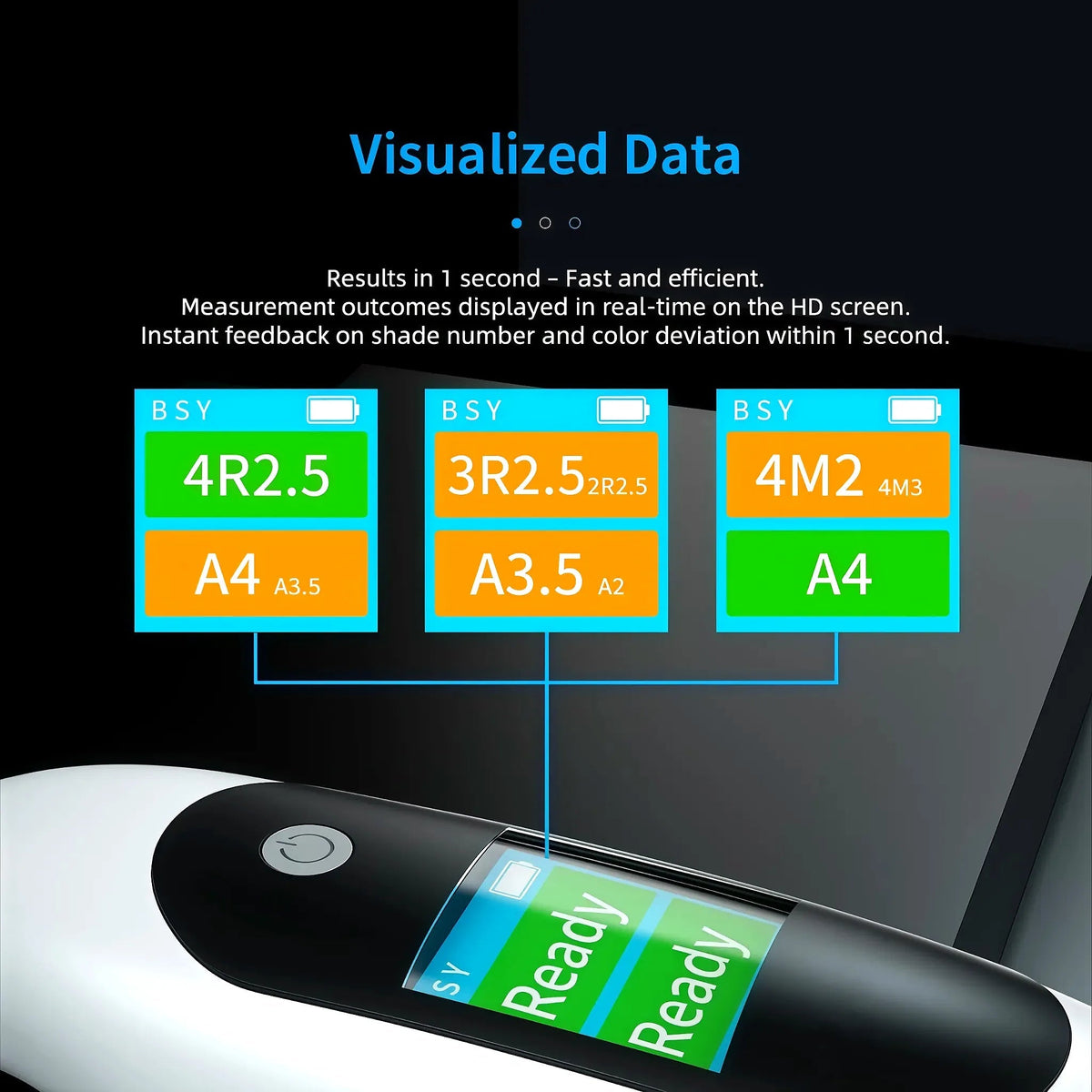

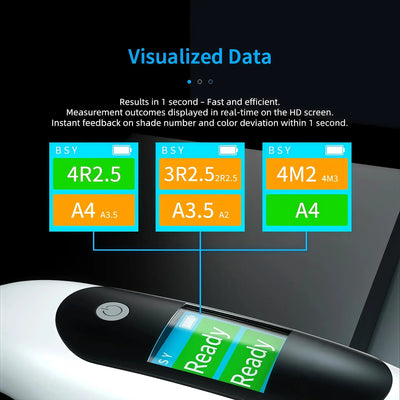

• 1-Second Digital Measurement – Instant shade analysis for faster clinical workflow.

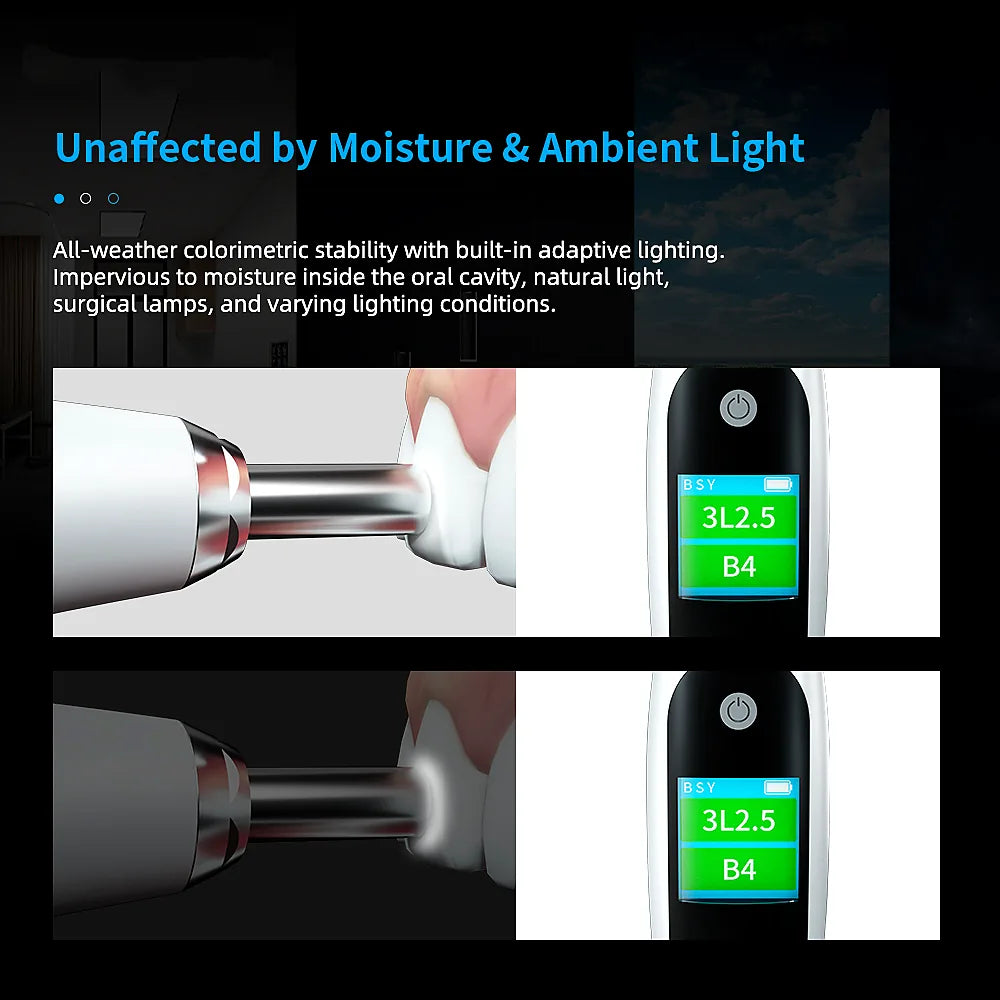

• Adaptive Ambient Light Compensation – Ensures consistent results regardless of surrounding lighting conditions.
• Advanced Color Difference (ΔE) Analysis – Improves restoration planning and shade selection accuracy.
• Rechargeable Cordless Design – Lightweight and ergonomic for comfortable daily clinical use.
• Hassle-Free Maintenance & Hygiene – No high-temperature or high-pressure sterilization required. Simply clean the probe with 75% medical alcohol before and after each use to ensure optimal infection control.
• CE Certified Medical Device – Manufactured in compliance with European safety, health, and quality standards.
• 1-Year Manufacturer Warranty – Provides dependable performance and long-term confidence.

Care Instructions:

To maintain measurement accuracy and prolong device life, always clean the probe with 75% medical alcohol before and after use. Remember to replace the protective cap after each session to prevent scratches or damage that could affect future color matching.

How It Works

1. Prepare – Remove the protective cap and disinfect the probe with a 75% alcohol wipe before use.

2. Turn On – Press and hold the power button for 3 seconds until the device is ready.

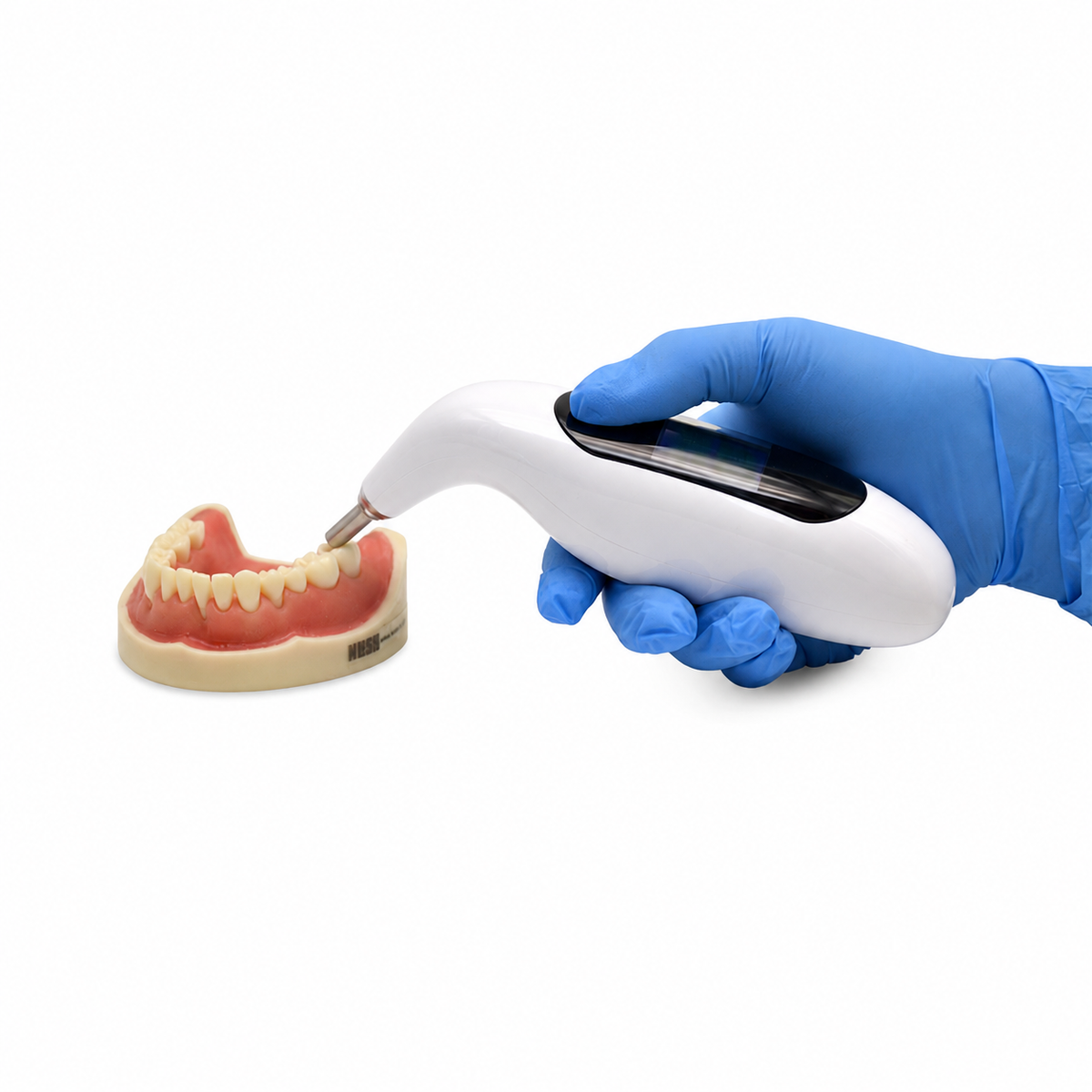

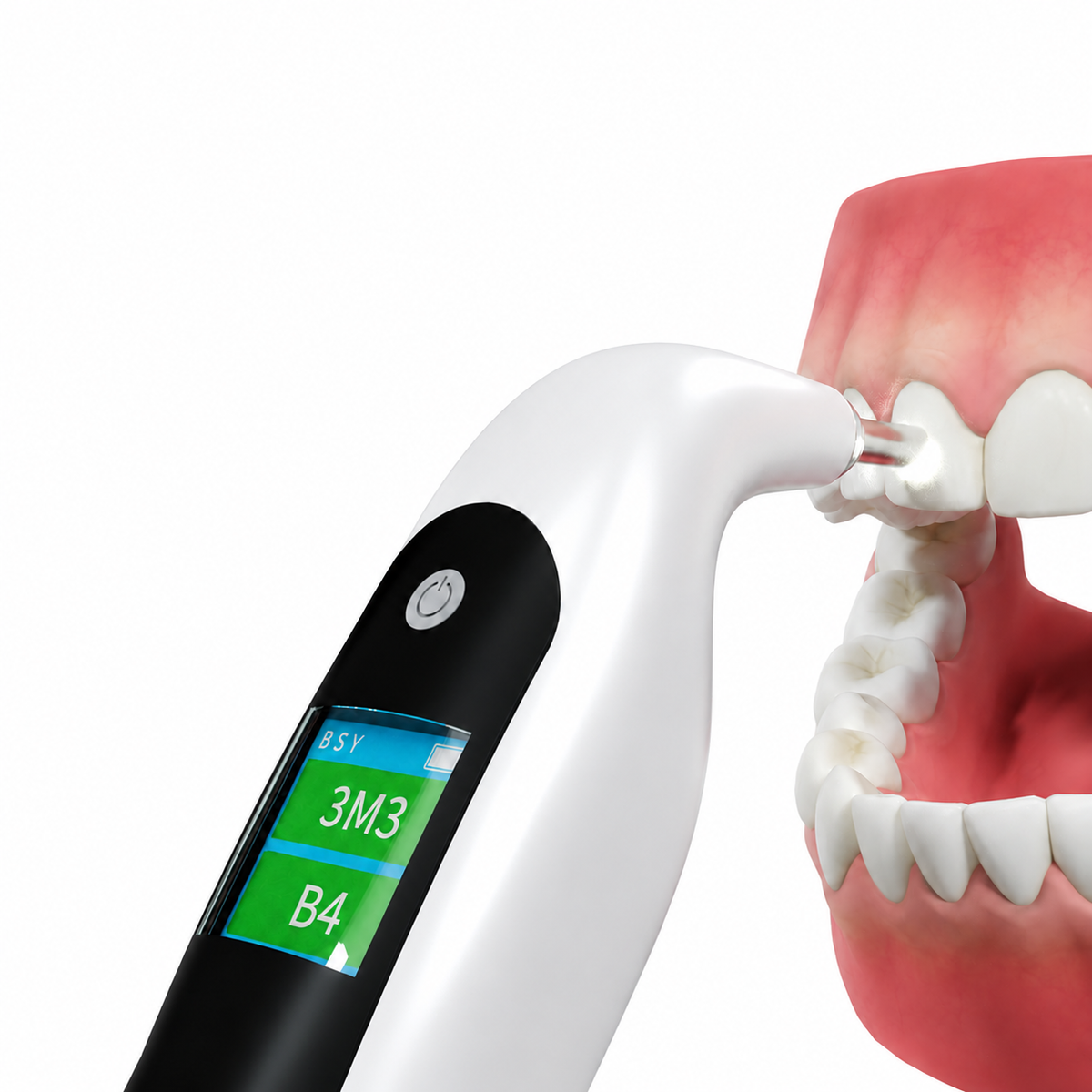

3. Measure the Tooth – Place the probe directly and flush against the tooth surface and press lightly for 1 second.

4. Measure Correctly – For uniform-colored teeth, measure the central portion. For layered colors, measure each layer separately.

5. Match the Shade – After measuring the patient’s tooth, use the displayed shade value to find the corresponding shade on the VITA Shade Guide. Do not scan the VITA shade tabs with the device to compare the result.

6. For Accurate Results – Always measure directly on the patient’s tooth. Avoid measuring from too far away or at an angle, as incorrect positioning may affect the reading.

Important

Correct positioning is essential for accurate shade readings.

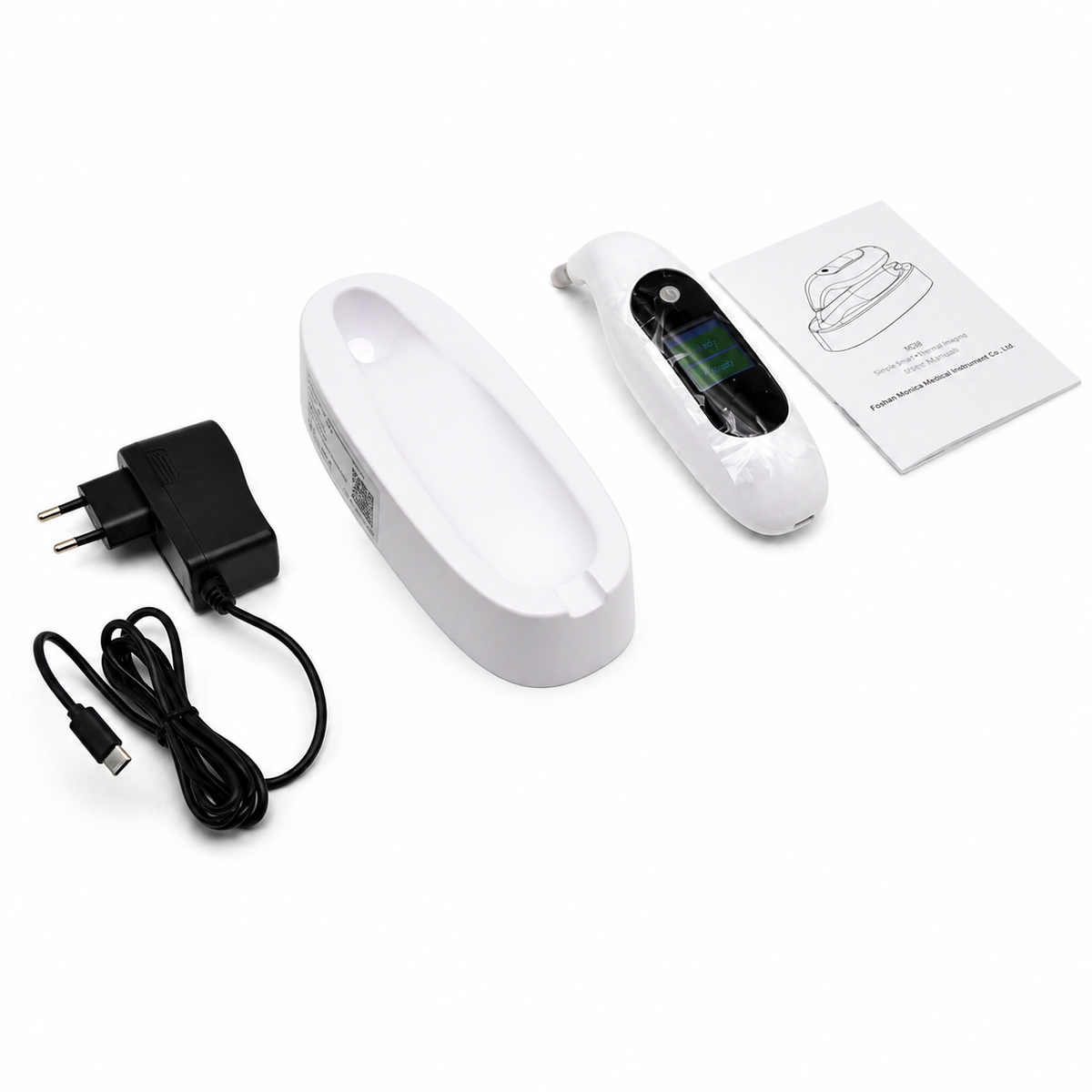

Package Includes:

• Digital Shade Matching Device ×1
• Charging Base ×1
• Power Adapter ×1
• User Manual ×1

Technical Specifications

• Model: E220
• Technology: High-Precision Spectrophotometer
• Compatible Shade Systems: VITA Classic A1–D4 & VITA 3D-Master
• Measurement Time: Approximately 1 second
• Battery: 3.7V 1500mAh Rechargeable Lithium Battery
• Power Adapter Input: AC 100–240V, 50/60Hz
• Power Adapter Output: DC 5V / 1A
• Protection Rating: IPX0
• Electrical Safety Class: Class II
• Applied Part Type: Type B
• Weight: 112g ±10%

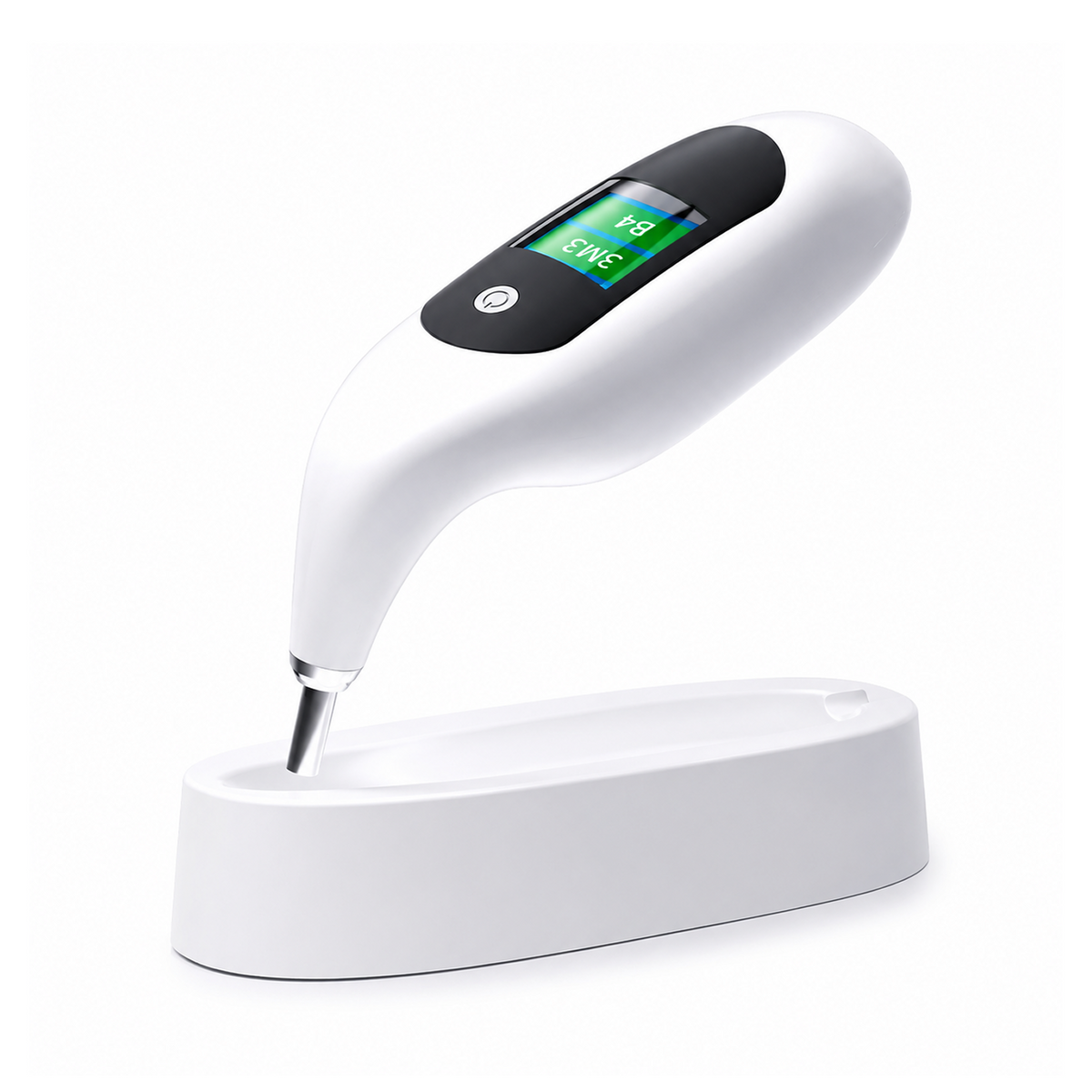

• Charging Method: Charging Base
• Warranty: 1 Year Manufacturer Warranty
