Dental Micro Intra-Oral Camera System

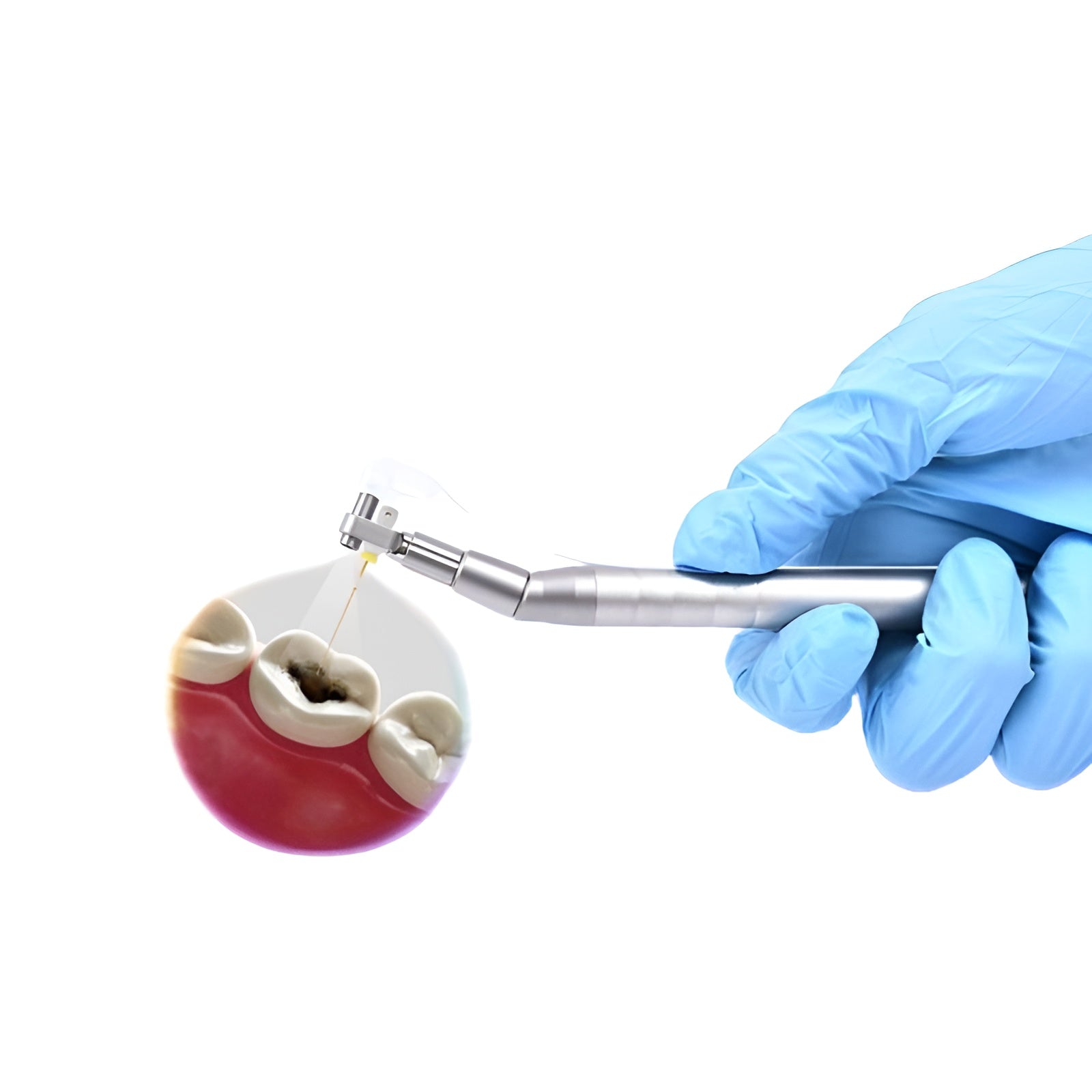

A specialized intra-oral camera system designed specifically for visualizing root canal treatments. This advanced technology enables dentists to see deep into narrow and curved root canals in real time, areas that are difficult or impossible to visualize with the naked eye. By providing high-definition imagery of the canal orifice and internal anatomy, this system enhances diagnostic accuracy, treatment precision, and patient communication during endodontic procedures.

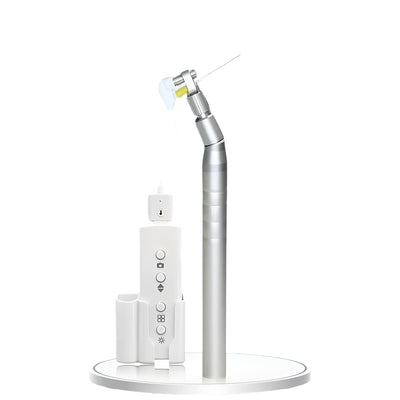

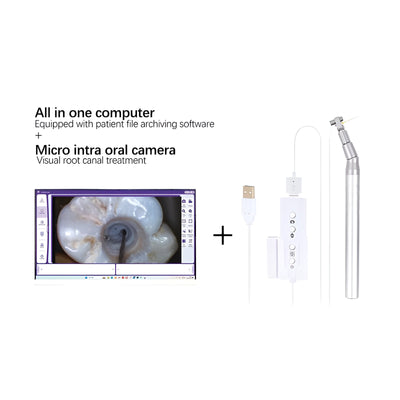

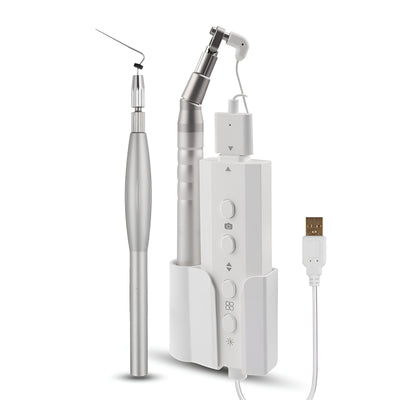

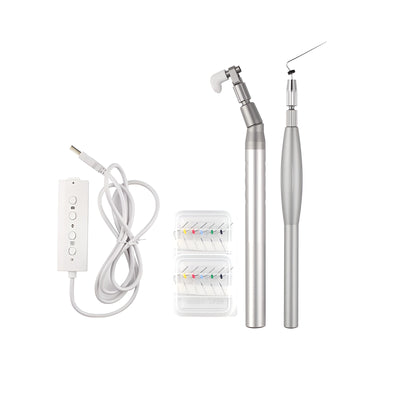

System Components

The complete system includes the following components:

• Micro Intra-oral Camera Probe: A slender, pen-like handpiece ergonomically designed for comfortable, precise manipulation. Equipped with a high-definition image sensor and integrated LED lighting for clear visualization deep within the canal.

• Controller / Receiver Unit: The central hub that manages camera signal processing and power distribution.

• Connectivity: Standard USB-A cable for direct connection to a laptop or all-in-one computer.

• Archiving Software: Includes imaging software for capturing, labeling, annotating, and storing patient diagnostic images and videos. Integrates seamlessly with existing patient records.


Key Technical Features

• Image Sensor: High-Definition CMOS

• Resolution: 1280 x 720 (720p HD)

• Focus: Autofocus – quick, sharp images even during movement

• Lighting: Integrated LED illumination

• Handpiece Design: Slender, pen-like, ergonomic for comfortable manipulation

• Connectivity: USB-A with Standard UVC Protocol

• Temperature Resistance: Withstands up to 105°C – compatible with dental sterilization

• Software: Image/Video Capture, Labeling, Archiving capabilities
