Dental Implant Guide Locator Kit

A precision-crafted surgical instrument set designed for the accurate positioning, alignment, and measurement of dental implants during placement procedures. This kit enables clinicians to verify critical parameters, including angulation, depth, and parallelism, essential for achieving predictable osseointegration and long-term prosthetic success.

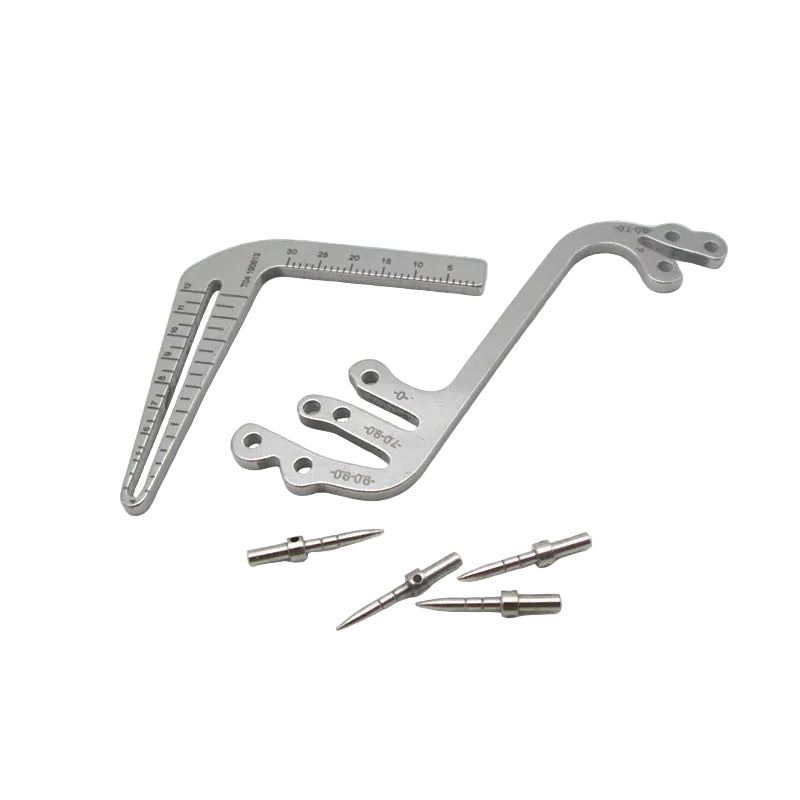

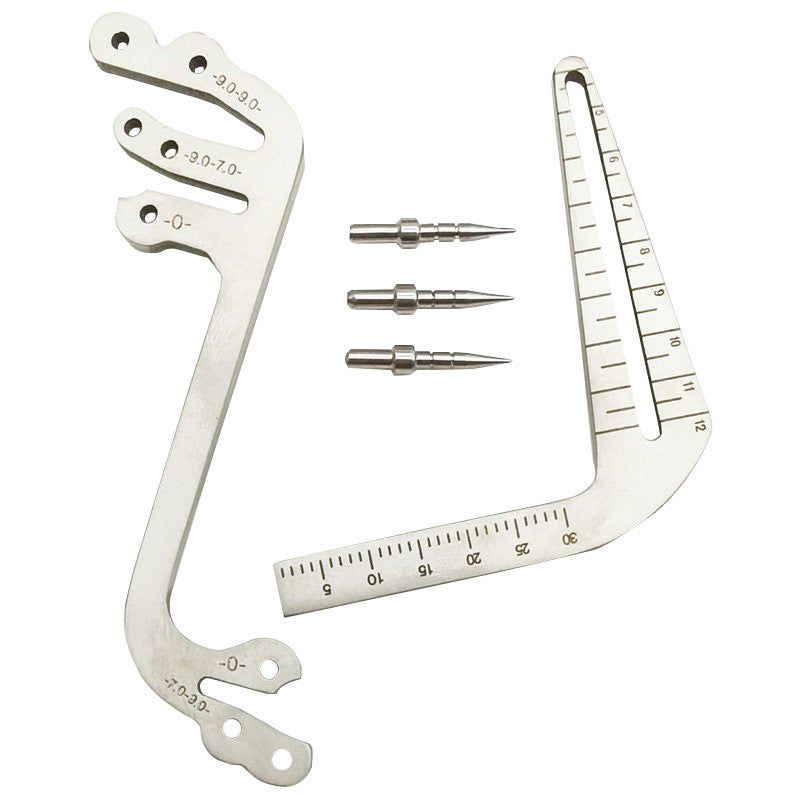

Kit Components & Functions

This comprehensive set includes three precision instruments, each engineered from medical-grade, autoclavable stainless steel:

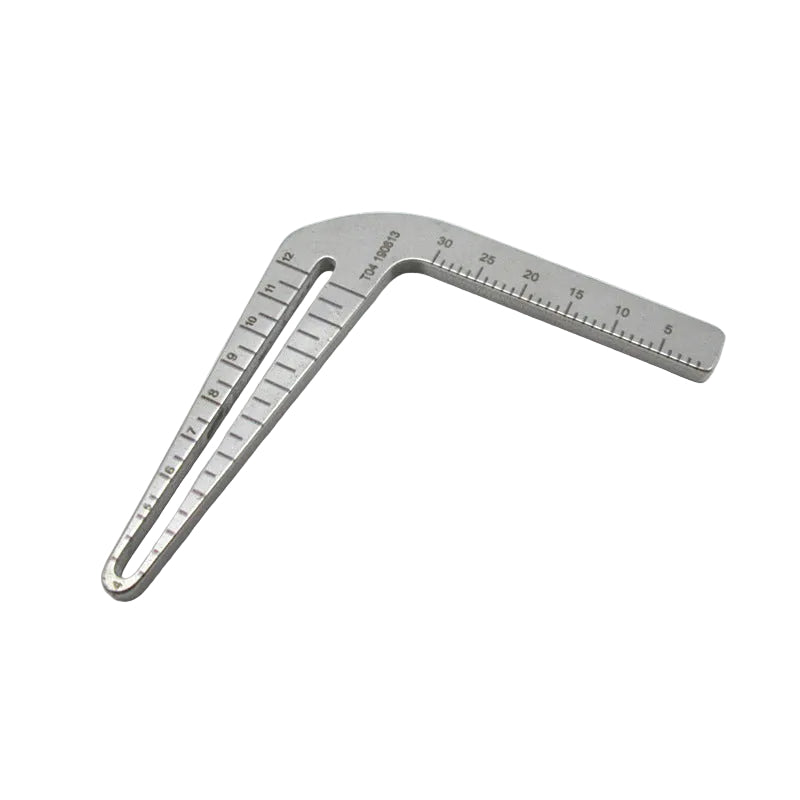

• L‑Shaped Guide Plate (1 pc)
  Single‑tooth placement – Guides mesiodistal and buccolingual positioning.

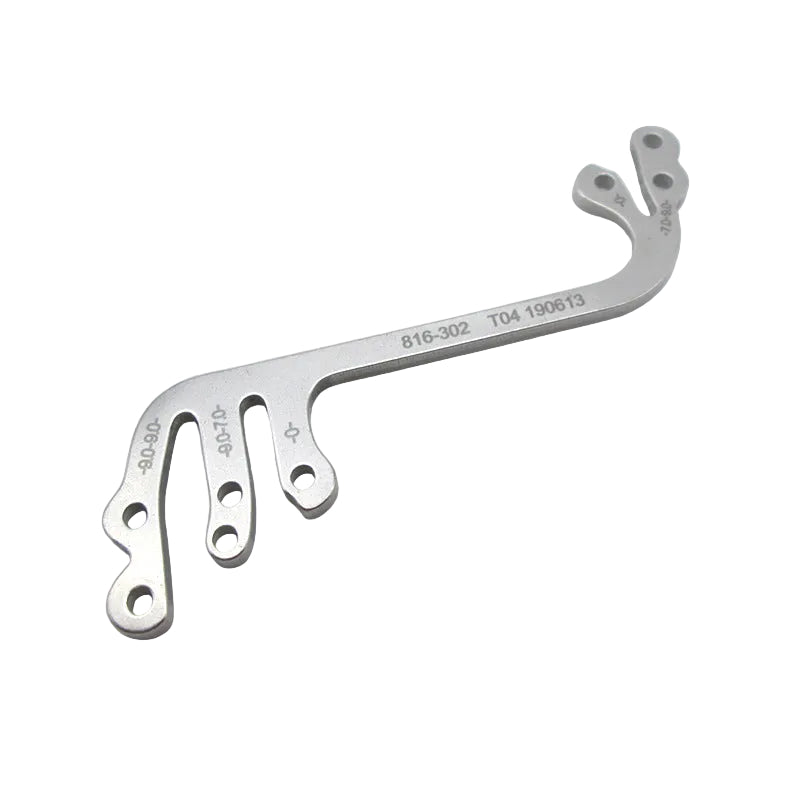

• S‑Shaped Guide Plate (1 pc)
  Multi‑implant cases – Enables simultaneous positioning and spatial assessment of two or more sites.

• Locating / Parallel Pins (4 pcs)
  Osteotomy verification – Confirm depth, angulation, and parallelism for prosthetic predictability and passive fit.

Key Features & Benefits

Surgical-Grade Precision

• Instruments are precision-machined to strict tolerances, enabling accurate, repeatable measurements during osteotomy preparation and implant placement.

• Clearly defined geometries allow for immediate visual and tactile assessment of implant position.

Clinically Safe Design

• All guide plates feature rounded edges and smoothly polished surfaces to prevent inadvertent tissue trauma or scratching of adjacent tooth structures during intraoral manipulation.

• Ergonomically contoured for comfortable, stable handling within the surgical field.

Fully Autoclavable

• Manufactured from high-grade, corrosion-resistant stainless steel.

• Withstands repeated steam sterilization cycles at temperatures up to 135°C (275°F) without degradation of finish, sharpness, or dimensional accuracy.

Universal Applicability

• Compatible with all major implant systems and platform diameters.

• Suitable for both single-stage and two-stage surgical protocols.

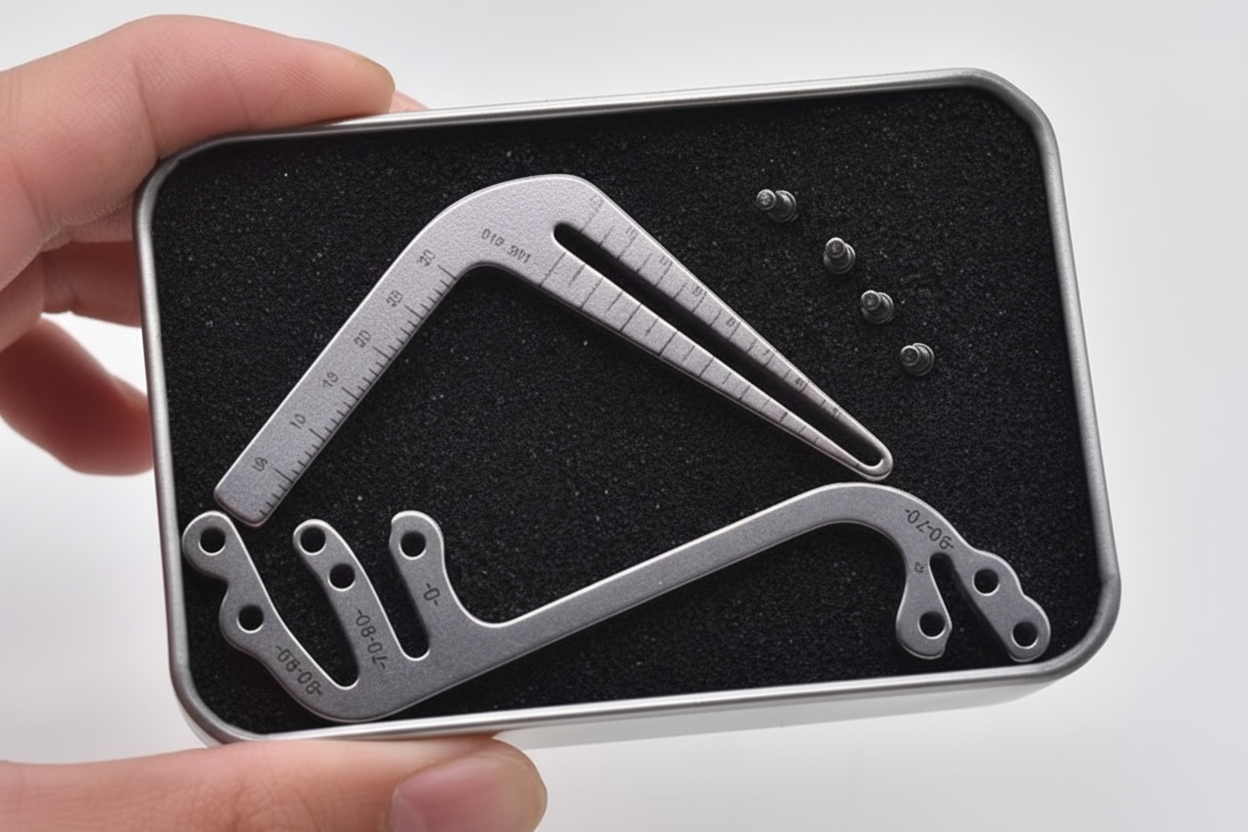

Compact & Organized

• Instruments are designed for secure storage within standard sterilization cassettes or surgical trays.

• Streamlined profile minimizes clutter in the operative field.
