Denjoy FreePex Dental Apex Locator

A professional-grade, 6th-generation electronic apex locator designed for high-precision root canal measurements. The Denjoy FreePex delivers exceptional accuracy, reported at 98,4%, placing it on par with the industry gold standard. Engineered with advanced multi-frequency technology, it provides reliable working length determination in both wet and dry canal conditions, making it an indispensable tool for predictable endodontic outcomes.

Key Technical Specifications

• Technology: 6th-generation multi-frequency system – ensures accurate measurements regardless of canal moisture levels

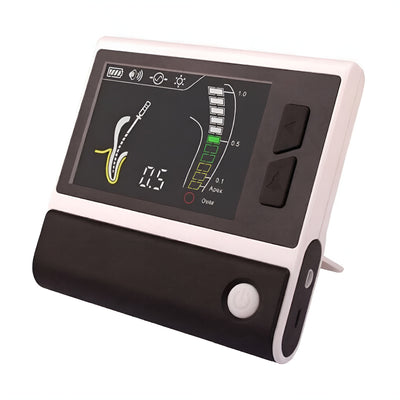

• Display: 3.9-inch color LCD screen – provides real-time visualization of file position within the root canal

• Accuracy: 98.4% – clinically proven precision comparable to industry gold standard

• Indication Range: 1.0 to "Over" clear scale for file position tracking

• Calibration: Automatic – adjusts for environmental factors such as temperature and moisture

• Power Supply: Built-in 3.7V / 800mAh lithium battery – rechargeable, cordless operation

Design and Ergonomics

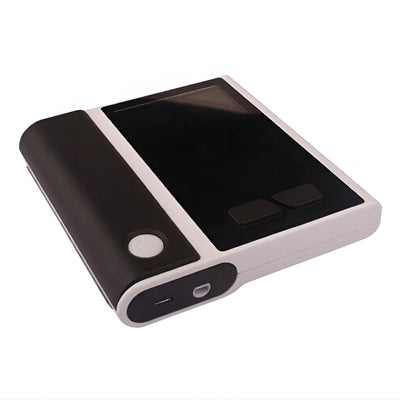

• Foldable Body: Adjustable design allows for customizable viewing angles during clinical procedures, improving visibility and ergonomics

• Audio Feedback: Built-in buzzer with adjustable volume – beeping accelerates as the file approaches the apical constriction, providing auditory confirmation of position

• Portability: Compact dimensions (120x110x25 mm) and lightweight construction.

Operational Guide Summary

Step-by-Step Usage:

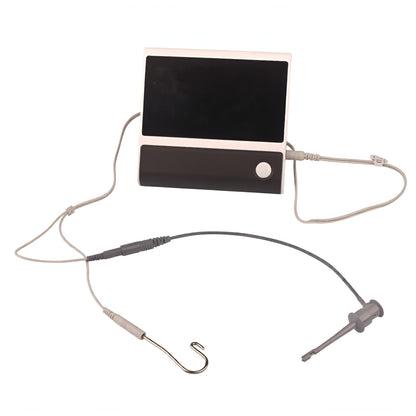

1. Setup: Insert the probe cable into the socket on the right side of the device.

2. Power On: Press and hold the power button for 2 seconds to turn the unit on or off.

3. Patient Connection: Attach the file holder to the probe cable and place the mouth hook on the patient's lip.

4. File Attachment: Clip the metal part of the endodontic file to complete the circuit.

5. Measurement: As the file advances into the canal, the color screen displays its real-time position. A reading of 0.5 typically indicates that the file tip has reached the apical constriction – the target working length termination point.
